Location: Product=>Wireless Tour Guide System =>32 Series=>Wireless Tour Guide System SPL-32 |

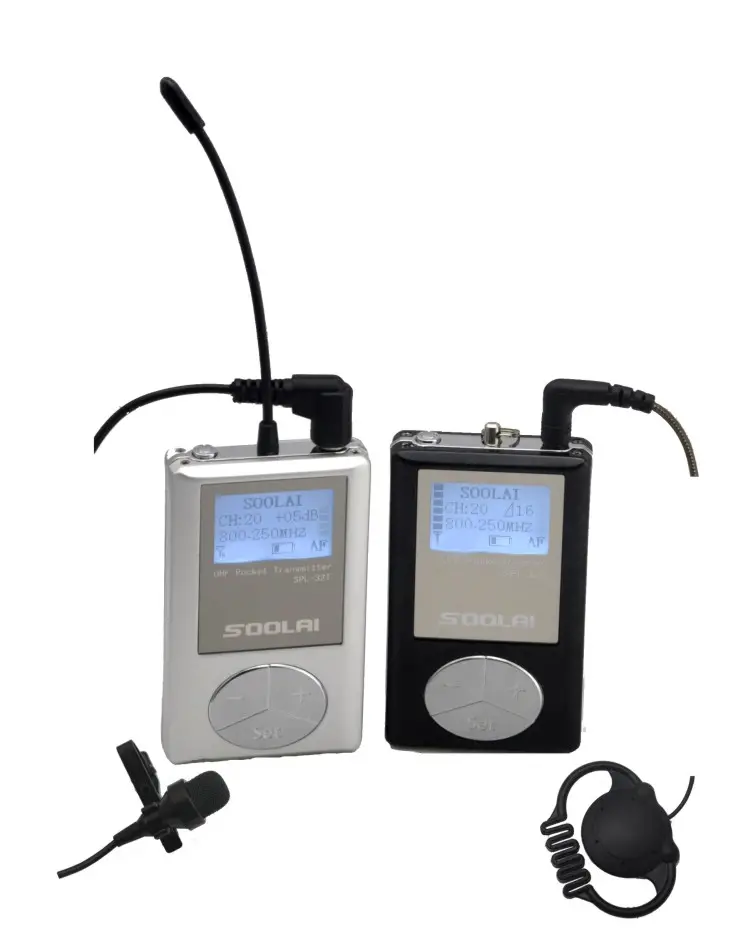

Wireless Tour Guide System 32 Series |
| ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
◆ Main Applications |
| Touring |
| Widely used in touring, visiting museums, exhibitions and factories. |
| Guest reception |
| Used in reception of visitants in product presentation, advanced exhibition of large companies. |
| Wider use in meeting, school teaching and so on. |
| Stage monitoring |
| Wireless monitor of the performance: especially for the acting singer to monitor the accompaniment. |
| |
| |
|
|
|
|
|
|
|
|
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
|
◆ Special Features of wireless tour guide system
|
| ● Portable design, super compact and lightweight.
|
|
| ● Metal aluminum alloy shell design. |
| ● UHF band PLL synthesized design. |
| ● 38 Fixed-channels and 32 User-channels design, frequency of User-channel can be set by user. |
| ● 32 channels (languages) can be switched quickly. |
| ● 96*64 dot matrix white LCD display. |
| ● LCD display channel, frequency, volume, battery state, RF level, audio level and overload prompt . |
| ● "Digital Pilotone & RF Noise Lock" dual-squelch circuit of Soolai original creation, to improve anti--interference |
| |
performance of system. |
| ● High performance double-IF circuit design. |
| ● Adopt multi-stage high performance RF filter, high anti-interference performance to ensure mutiple channels can be |
| used simultanously without interference. |
| ● Digital 16-step volume control of receiver. |
| ● Digital 21-step SQ adjusting of receiver. |
| ● 31 steps microphone gain adjustment (-10～+20dB) of transmitter. |
| ● HIGH/LOW RF power output adjustment of transmitter. |
| ● Quick-mute function of transmitter. |
| ● Built-in polymer ion polymer battery, continuously working for 12-13hours. |

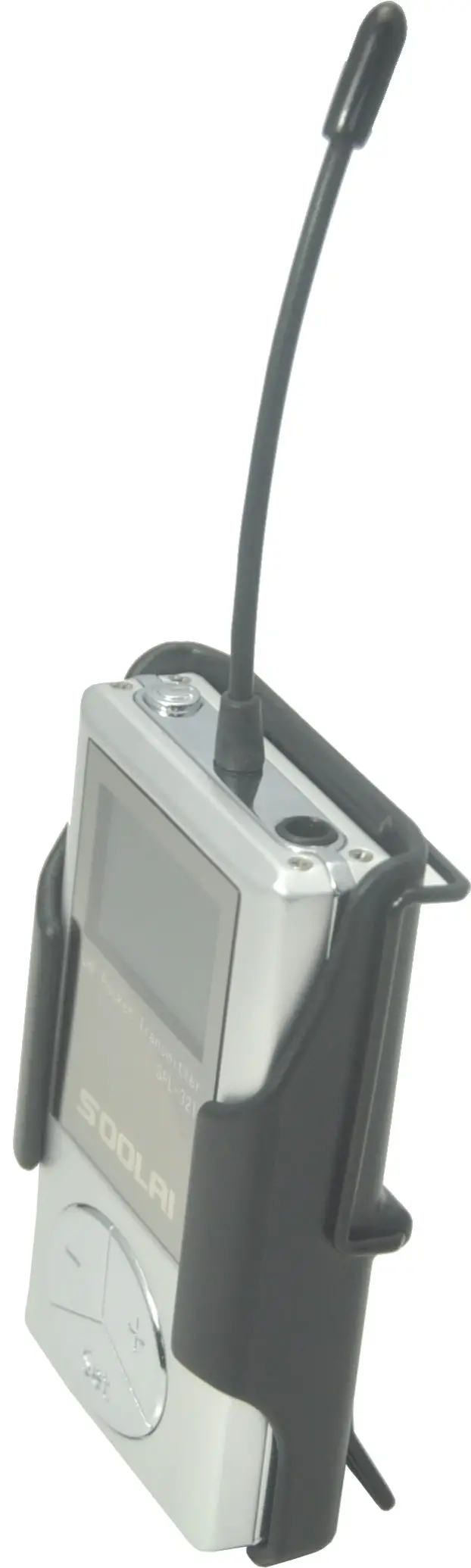

| ● Unique design of the main device and the clip is separated, and there are two ways of wearing by lanyard and waist |
|
| hanging. |
| ● Parameter setting with password protection.
|
| ● Variously charging equipments for choice, convenient to charge, disinfect, store and carry. |
| ● Operating range 200m (line-of-sight). |
| ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
|
◆ Tour Guide Application
|
| |
 |
|
● The speakers’ voice is clearly heard by listeners. Receivers’ quantity is unlimited.
● Listeners can hear both speaker A and speaker B .
☆ A multi-person speaker recommended to use the full-duplex tour guide system TG-900.
|
|
| ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
◆ Simultaneous lnterpretation Application
|
| |
 |
|
● Spokesman’s voice was emitted by a wireless transmitter.
● Interpreters can monitor the spokesman by wireless receivers and then their transliteration were emitted by other wireless transmitters.
● While visitors can hear different languages by taking wireless receivers on different channels.
|
|
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |

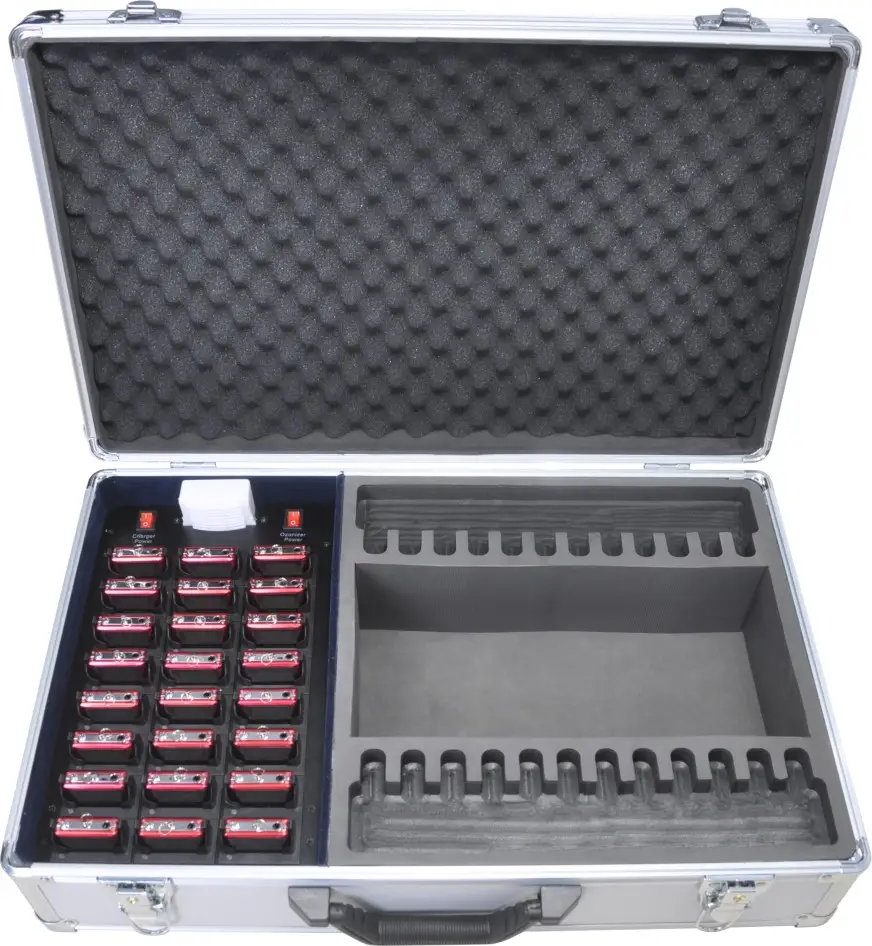

SCB-24AD |
|

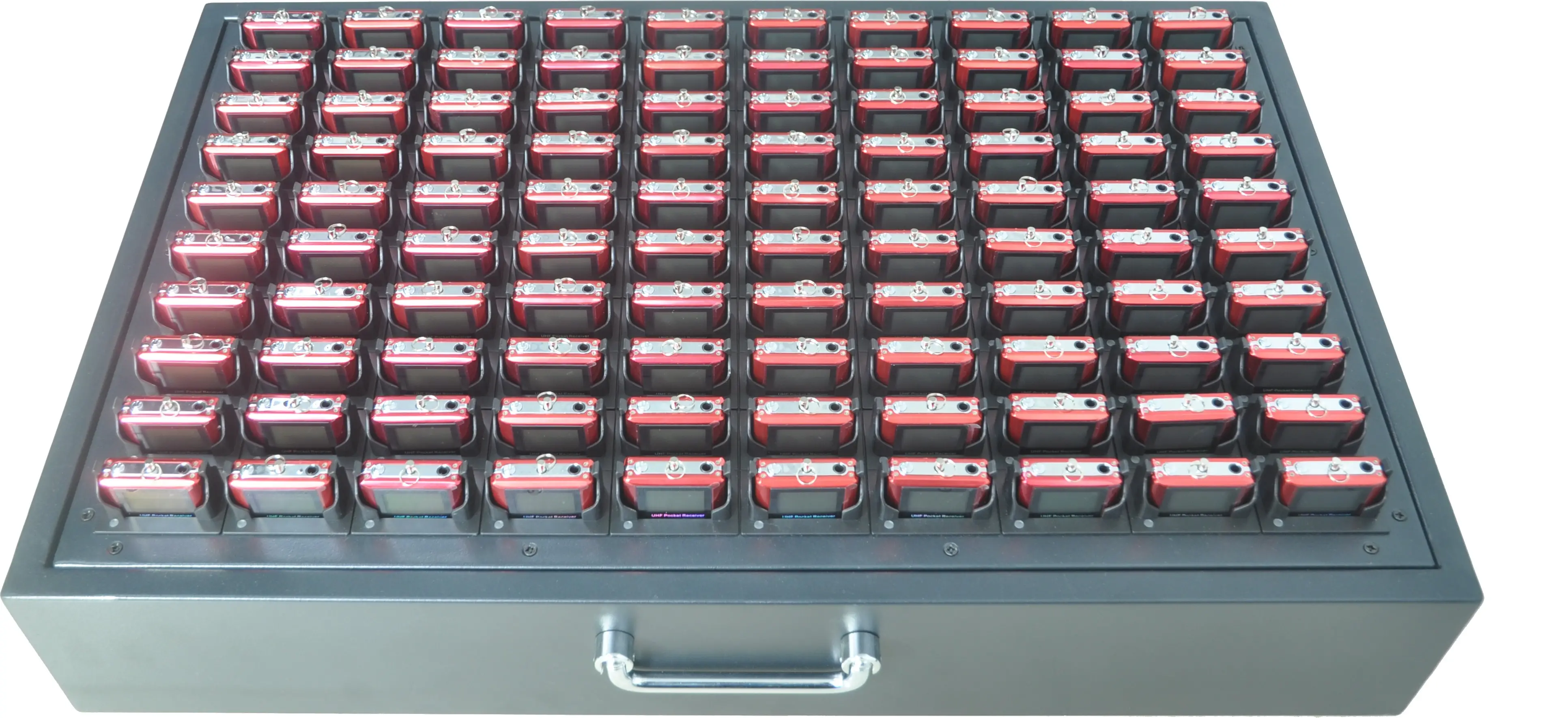

SC-100A |
|
| |
24-slots charging case |
100-slots charger |
|
| |
● Charging 24 units at same time |
● Charging 100 units at same time |
| |
● Charging time is about 4-5 hours |
● Charging time is about 2-3 hours |
| |
● Within Ozone disinfection function |
|
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
◆ Specifications of wireless tour guide system |
| |
RF Carrier Frequency Range |
UHF 788-812MHz (F800-24 ) |
① |
|
|
| |
Oscillation Type |
PLL Synthesized |
|
| |
Frequency Stability |
±0.005% (0～50℃) |
|
| |
Display Screen |
96*64 dot matrix LCD Display |
|
| |
Tuneable Channels |
38 Fixed channels+32 User channels |
|
|
|
| |
Switching Bandwidth |
Up to 24MHz |
|
| |
Tunable Steps |
625KHz (Fixed channel),25KHz(User channels) |
|
|
| |
Modulation |
±45KHz deviation,compander system with pre-and de-emphasis |
|
| |
Signal-to-Noise Ratio |
>90dB typical (A-weighted ) |
|
| |
Total Harmonic Distortion |
<0.5%（ref.±45KHz deviation,1KHz modulation) |
|
| |
Audio Frequency Response |
50 - 15,000Hz, ±3dB |
|
| |
Power Supply |
Lithium ion polymer battery 3.7v/600mAh |
|
| |
Dimension |
69mm * 42mm * 14mm |
|
| |
Unit Weight |
<50g (With battery) |
|
| |
Operating Temperature |
-20℃ to +70℃ |
|
| |
Operating Range |
>200m (Environment dependent) |
|
| |
Certificates |
FCC、CE |
|
| |
Note① : Country depended |
| |
F652-24: Frequency Band 640～664MHz (38 Fixed channels+32 User channels) |
| |
F800-24: Frequency Band 788～812MHz (38 Fixed channels+32 User channels) |
| |
F827-09: Frequency Band 823～832MHz (38 Fixed channels+32 User channels) |
| |
F864-02: Frequency Band 863～865MHz (81 Fixed channels+32 User channels) |
| |
F858-24: Frequency Band 846～870MHz (38 Fixed channels + 32 User channels) |
| |
F915-26: Frequency Band 902～928MHz (42 Fixed channels + 32 User channels) |
| |
Other frequency band can be customed |
| |
 |
|
Antenna |
1/4 λ flexible antenna or uses microphone cable |
|
| RF Power Output |
10mW/20mW |
|
| Harmonic Suppression |
>50dB |
|
| Modulation |
FM ±45KHz deviation (nominal) |
|
| Microphone Input |
Unbalanced, 3.5mm connector（Tip） |
|
| Line Input |
Unbalanced, 3.5mm connector（Ring） |
|
| Microphone Gain Adjustment |
Programmable in 31 steps, -10dB to +20dB |
|
| Operating Time |
11-12 hours (High Power) 18 hours(Low Power) |
|
| |
|
● Receiver SPL-32R |
 |
|
Sensitivity |
2uV (60dB S/N) |
|
| |
Antenna |
Uses earphone cable |
|
| |
Intermediate Frequency(IF) |
Double-IF 110.6MHz/10.7Mhz |
|
| |
Image Rejection |
80dB Typical |
|
| |
Spurious Rejection |
80dB Typical |
|
| |
Audio Output |
3.5mm connector |
|
| |
Volume control |
16 steps digital volume control |
|
| |
Minimum load Impedance |
12Ω |
|
| |
Operating Time |
12-13 hours |
|
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
◆ Accessories of wireless tour guide system |
| |
 |
|
 |
|
 |
|
 |
|
 |
|
| |
SA-110 |
|
SA-120 |
|
SA-130 |
|
SA-90 |
|
|
|
| |
Lavalier Mic |
|
Headset Mic |
|
Micro-pole mic |
|
Clip |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
| |
 |
|
 |
|
 |
|
 |
|
 |
|
| |
SA-51 |
|
SA-215 |
|
SA-62 |
|
T-205 |
|
SA-91 |
|
| |
Headphone |
|
Single-side Earphone |
|
Earphone |
|
Neckloop |
|
Lanyard |
|
| |
|
|
|
|
|
|
|
|
|
|
| |
 |
|
 |
|
 |
|
 |
|
 |
|
| |
SC-02A |
|
SC-10A |
|
SCB-24AD |
|
SCB-32AD |
|
SC-100A |
|
| |
2-slots charger |
|
10-slots charger |
|
24-slots charging/
disinfection case |
|
32-slots charging/
disinfection case |
|
100-slots charger |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
