Location: Product=>GPS BUS audio guide system=>GPS vehicle audio guide system BAG-1000 |

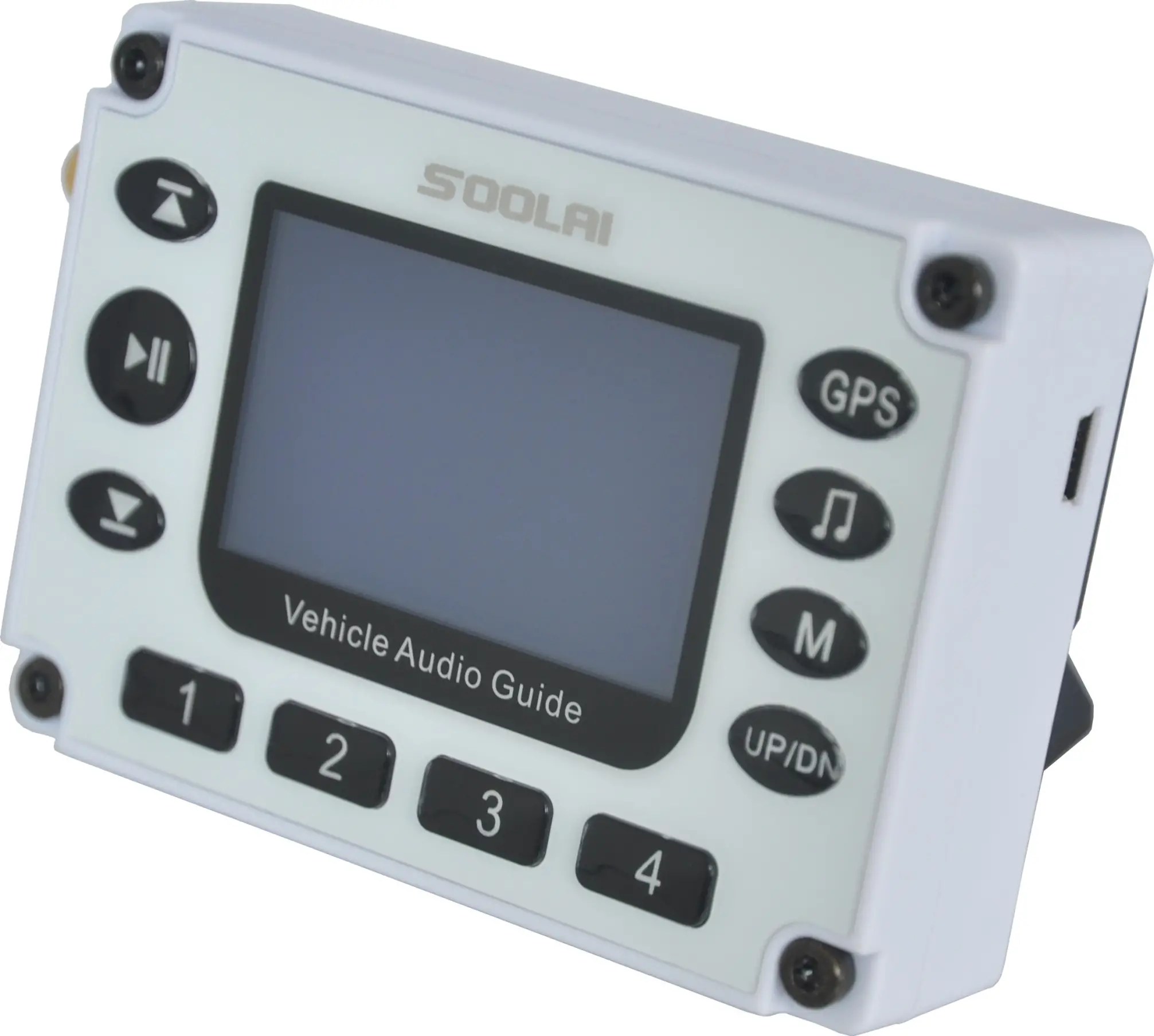

GPS Vehicle audio guide system BAG-1000 |
| ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
◆ Main features of GPS Vehicle audio guide system
|
| ● Support RFID signal trigger playback. |
| ● Support GPS, GLONASS and BDS satellite positioning playback. |
| ● GPS data wireless synchronization function, the data in GPS collector can be transmitted to the vehicle audio guide |
| by wireless. |
| ● 128*64 dot matrix LCD display. |
| ● Support audio files of MP3 format, 8-48KHz sample rate, 8-320kbps bit rate and VBR. |
| ● Multi-languages available, 4096 audio files in each language. |
| ● Object name display, support multi-language characters. |
| ● With function of auto-switch Upline and Downline. |
| ● To turn on/off Music function by button. |
| ● To turn on/off GPS function by button. |
| ● Point replay function and service audio insert playback. |
| ● External GPS antenna interface. |
| ● 3.5mm Audio stereo plug connected output. |
| ● Automotive power supply, wide range work voltage 5～36V DC. |
| ● With over current, over voltage multiple protection circuit, safe and reliable. |
| ● Support RF wireless remote control. |
| ● It has fixed installation, bracket installation and embedded installation. |
| ● It has the function of synchronous playback, the contents played by the sync slave audio guide are automatically |
| synchronized from the GPS vehicle audio guide. |
| ● It has the function of leaving alarm,Portable sync slave audio guide away from the GPS vehicle audio guide when |
| prompted alarm. |
| ● It has the function of recall, the vehicle audio guide can call the sync slave audio guide remotely to return. |
| ● It has synchronous shutdown function, the portable sync slave audio guide will shutdown automatically after the GPS |
| vehicle audio guide is off for three minutes. |
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
◆ Application of GPS Vehicle audio guide system
|
| |
|
|
|
|
|
| |
 |
 |
 |
 |
|
| |
Sightseeing Bus |
Tourist Boat |
High-speed train |
Cruise ship |
|
| |
| |
GPS vehicle audio guide system is unique product which new R&D by Soolai, it can be placed on tourist vehicles, just |
| |
like sightseeing bus, tourist boat. It could position automatically by receiving the GPS satellite signals, and play the |
| |
corresponding audio automatically. Tourists could also choose the language to listen to themselves by slave device, and |
| |
do not interfere with other tourists, providing a very good tourist experience. |
|
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |

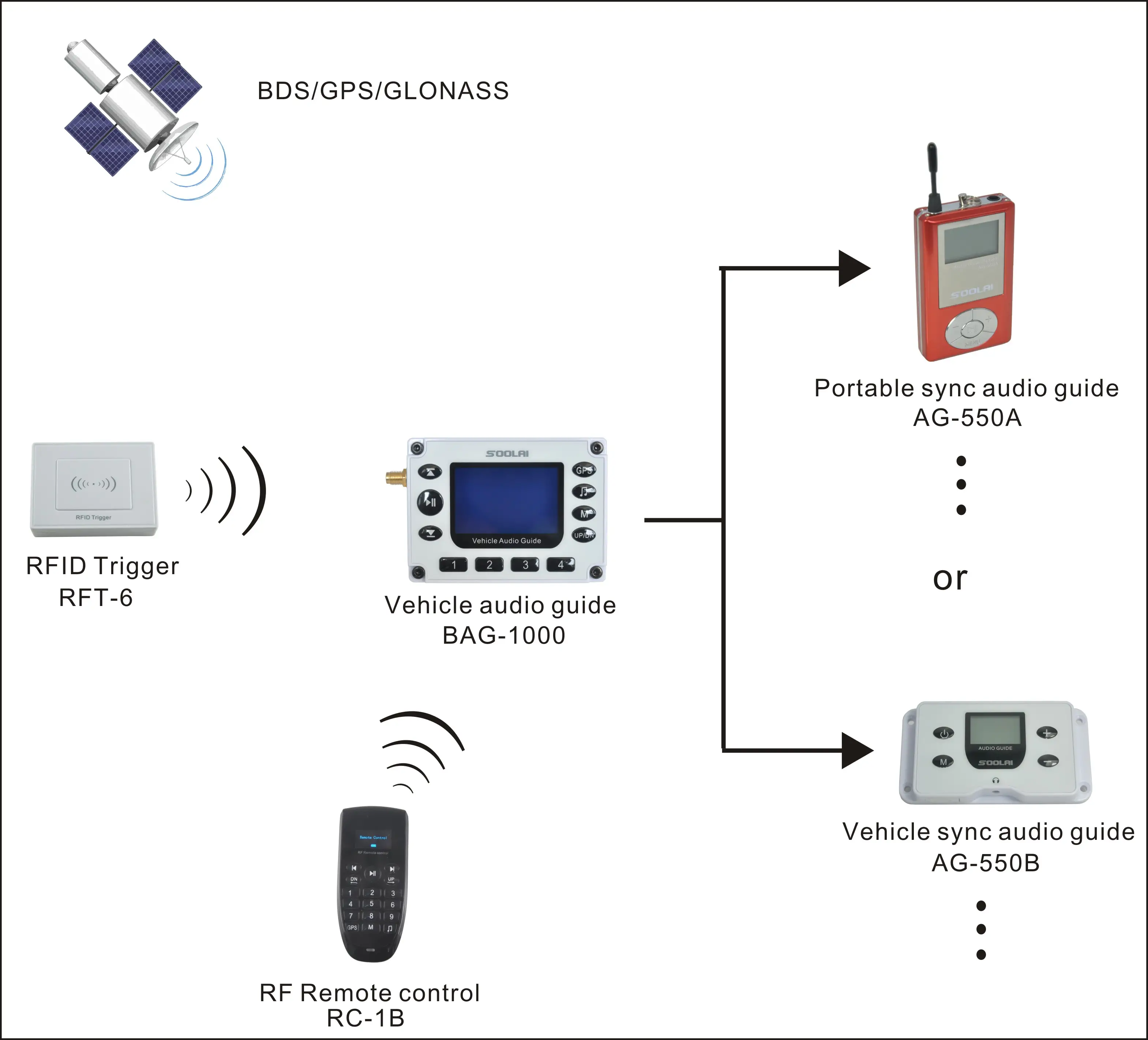

◆ Composition of GPS Vehicle audio guide system |
| |
|
|
| |
|
|
| |
● Simple system configuration, it is composed of the vehicle audio guide and sync audio guide units. |
|
| |
● The vehicle audio guide receives GPS, GLONASS and BDS satellite signals, Realize automatic trigger playback. |
| |
● The vehicle audio guide receives RFID signal, realize automatic trigger playback. |
|
| |
● The vehicle audio guide supports wireless remote control operation. |
|
| |
● The sync audio guide supports visitors to choose a language to listen to. |
|
| |
● The sync audio guide automatically plays the content of the vehicle audio guide synchronously. |
|
| |
● The sync audio guide has two models to choose from: |
|
| |
AG-550A: Portable design, carry it conveniently, no installation required, built-in polymer ion polymer battery. |
| |
AG-550B: Fixed to seat, easy to install, automotive power supply, waterproof design. |
|
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
◆ Sync audio guide |
| |
AG-550A |
AG-550B |
|
| |

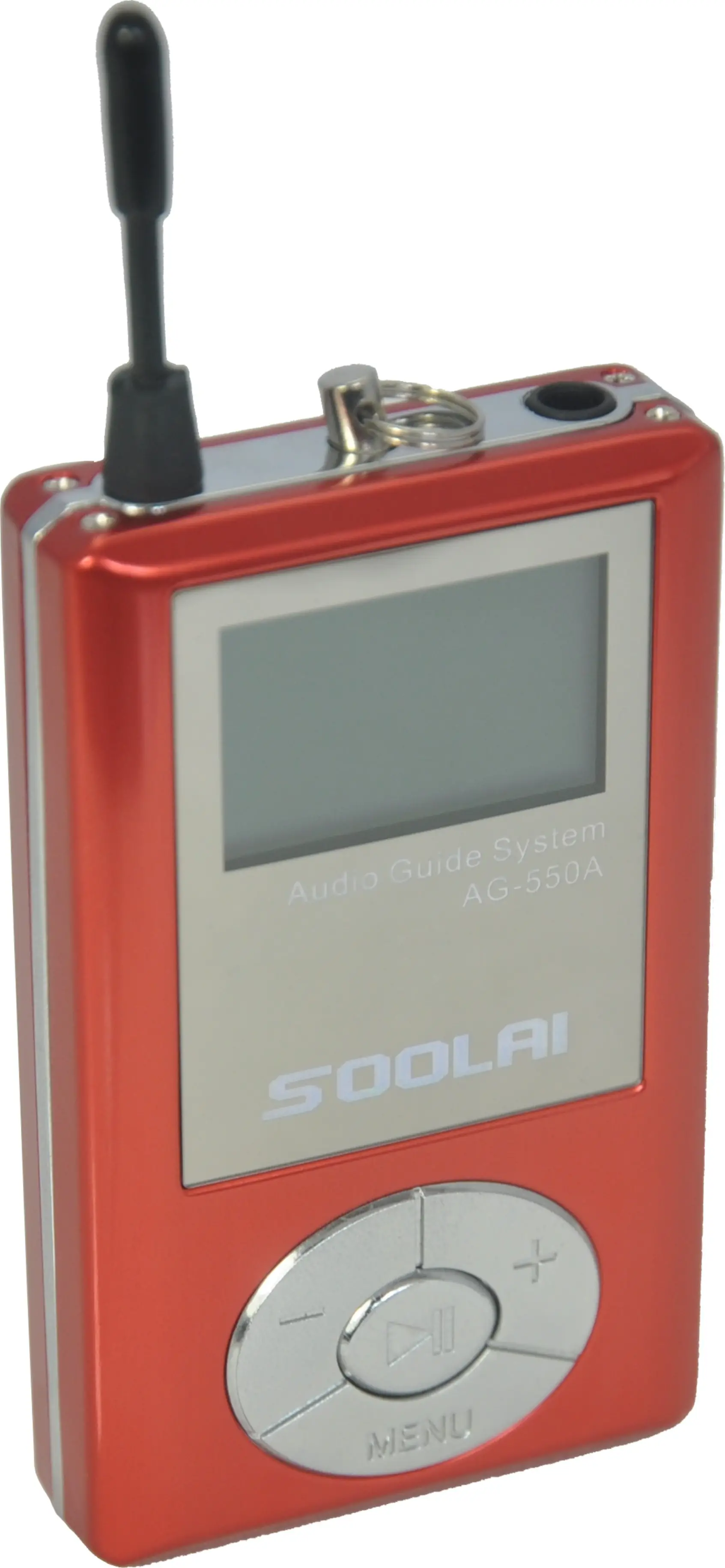

Portable sync audio guide |

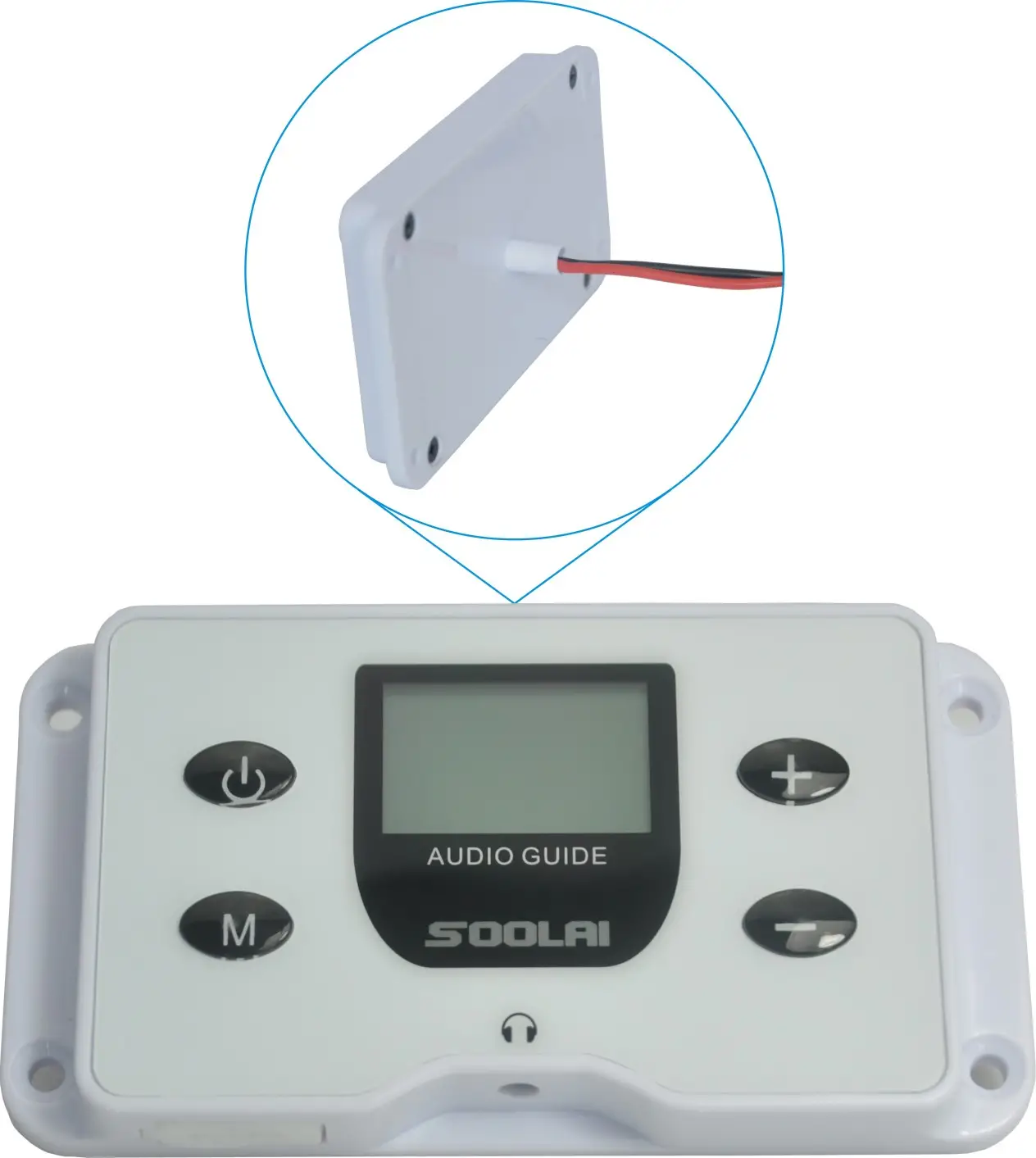

Vehicle sync audio guide |
|
| |
● Portable design, no installation required. |
● Fixed to seat, easy to install. |
|
| |
● Support multinational language selection. |
● Support multinational language selection. |
|
| |
● Automatically and synchronously play the contents |
● Automatically and synchronously play the |
|
| |
of the vehicle audio guide. |
contents of the vehicle audio guide. |
|
| |
● Support free time music playback. |
● Support free time music playback. |
|
| |
● Built-in polymer ion polyer battery. |
● Automotive power supply, DC input 5～36V |
|
| |
● It has the function of leaving alarm |
● Waterproof |
|
| |
● It has the function of synchronous shutdown |
|
|
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
◆ Specification of GPS Vehicle audio guide system |
| Vehicle audio guide specification: BAG-1000 |
| |
Satellite Positioning |
GPS／BDS／GLONASS |
|
|
Area of GPS Positioning |
2-100 meters adjustable |
|
|
RFID Signal Receiving |
2.4GHz |
|
| Area of RFID Triggering |
0-100 meters adjustable |
|
| |
Synchronize channel number/frequency range |
88/2.4GHz |
|
| Display |
128*64 dot matrix, LCD display |
|
| |
Audio File Format |
MP3 Format (8-48KHz sample rates, 8-320kbps bit rate)) |
|
| |
Memory Capacity |
4GB (Optional 8G/16G/32G) |
|
| |
Language Number |
99（max） |
|
| |
Audio files Number |
4096 (per language) |
|
| |
Service Audio files Number |
9 (per language) |
|
| |
Music Number |
4096 (per language) |
|
| |
Audio Output |
3.5mm Plug audio stereo output, 1.5m cable |
|
| |
Audio Frequency Response |
50～18000HZ |
|
| |
Distortion |
<0.02% |
|
| |
S/N ratio |
>96dB |
|
| |
Power Input |
5～36V DC, 1.5m cable |
|
| |
GPS antenna interface |
SMA Type |
|
| |
Operating Temperature |
-20～60℃ |
|
| |
Dimension |
85*62*24mm |
|
| |
Weight |
300g |
|
| |
Sync audio guide specification |
| |
|
|
|
|
|
Installation Method |
Portable, no installation required |
|
Fixed to seat |
|
| Synchronize Frequency |
2.4GHz |
|
2.4GHz |
|
Synchronize Channel Number |
88 |
|
88 |
|
Synchronize range |
0-100 meters adjustable |
|
0-100 meters adjustable |
|
Display |
96*64 dot matrix, LCD display |
|
96*64 dot matrix, LCD display |
|
Audio File Format |
MP3 Format (8-48KHz, 8-320kbps) |
|
MP3 Format (8-48KHz, 8-320kbps) |
|
Memory Capacity |
4GB |
|
4GB |
|
Language Number |
99(max) |
|
99(max) |
|
Audio Files Number |
4096 (per language) |
|
4096 (per language) |
|
Service Audio Files Number |
9 (per language) |
|
9 (per language) |
|
Music Number |
4096 (per language) |
|
4096 (per language) |
|
Audio Output |
3.5mm Stereo Headphone Jack |
|
3.5mm Stereo Headphone Jack |
|
Audio Frequency Response |
50～18000HZ |
|
50～18000HZ |
|
Distortion |
<0.02% |
|
<0.02% |
|
S/N Ratio |
>96dB |
|
>96dB |
|
Power Input |
Built-in polymer ion polymer battery |
|
5～36VDC, 1.2m cable |
|
Operating Temperature |
-20～60℃ |
|
-20～60℃ |
|
Dimension |
69*42*14mm |
|
93*50*17mm |
|
Weight |
50g |
|
70g |
|
Waterproof |
- |
|
Support |
|
Away From The Alarm |
Support |
|
- |
|
Automatic Shutdown |
Support |
|
- |
|
|
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
◆ Optional accessories of GPS Vehicle audio guide system |
| |
 |
|
 |
|
 |
|
 |
|
 |
|
|
S-GPSdata |
|
RFT-6 |
|
RC-1B |
|
SC-02A |
|
SCB-24AD |
|
|

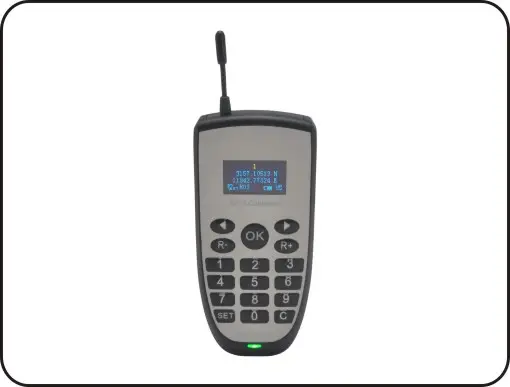

GPS Collector |
|
RFID Trigger |
|

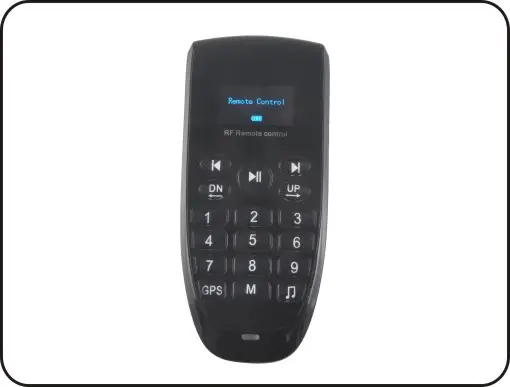

RF Remote control |
|
2-slots charger |
|
24-slots charging/
disinfection case |
|
| |
|
|
|
|
|
|
|
|
|
|
| |
 |
|
 |
|
 |
|
 |
|
 |
|
|
SA-215 |
|
SA-62 |
|
SA-51 |
|
SA-72 |
|
SA-91 |
|
|
Single-side Earphone |
|
Earphone
|
|
Headphone |
|

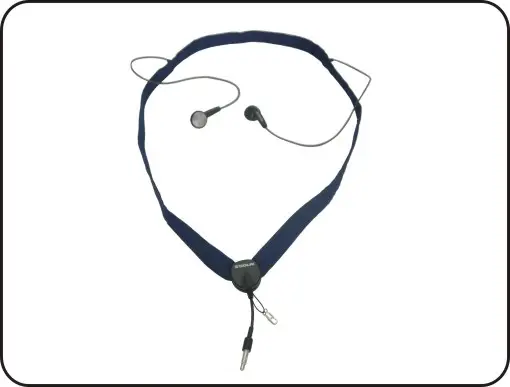

Lanyard Earphone |
|

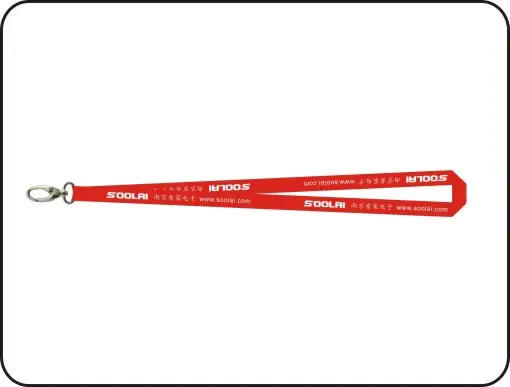

Lanyard |
|
|
|
