| ● Built in speaker, 3.5mm stereo headphone jack output. |
|
|
| ● Yellow and blue dual color OLED display. |
| ● Welcome screen can be custom made. |
| ● Support audio files of Mp3 format, 8-48KHz sample rate,8-320kbps bit rate and VBR. |
| ● 99 different languages available, 4096 audio files supported by each language. |
| ● Automated switch language. |
| ● Object name display, Support multi-language characters. |
| ● Can be triggered by passive tag within 0-5cm. |
| ● Can be triggered by infrared ray within 0-10m. |
|
| ● Can be triggered by RFID signal within 0-100m. |
| ● Maximum volume output can be locked. |
| ● With play restrict and play times statistics functions, applied to rental. |
| ● With the functions of play,/pause,fast forward/fast rewind, previous/next. |
| ● The latest three trigger contents can be selected and replayed. |
| ● Auto playing background music when trigger playing ended. |
| ● With vibrate and buzzer trigger prompt function. |
|
| ● With anti-theft alarm function. |
| ● With audio video sync function, visitors will hear synchronous audio when video is playing. |
| ● Battery states of RFID trigger RFT-6 and infrared trigger IRT-6 can be displayed on Audio |
| Guide. |
| ● The charger is compatible with 19 inch standard server network cabinet assembly. |
| ● High capacity lithium-ion battery, continuous operating time is more than 12 hours. |
| ● Parameters only can be changed by wireless decoder, prevent guests amending parameters. |
| ● Special upload software convenient to update audio contents. |
| |
◆ Realization of Audio Video Synchronization |
|
 |
|
|
|
| |
| |
| The video output AVT-6 connect |
| to video. |
| |
| Visitors who carry Audio Guide |
| unit enter trigger area of Audio-Video |
| sync trigger AVT-6. |
| |
| The audio guide unit would trigger |
| and play synchronous audio of video |
| in visitors’ required language |
| automatically. |
| |
| |
| |
|
| ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |

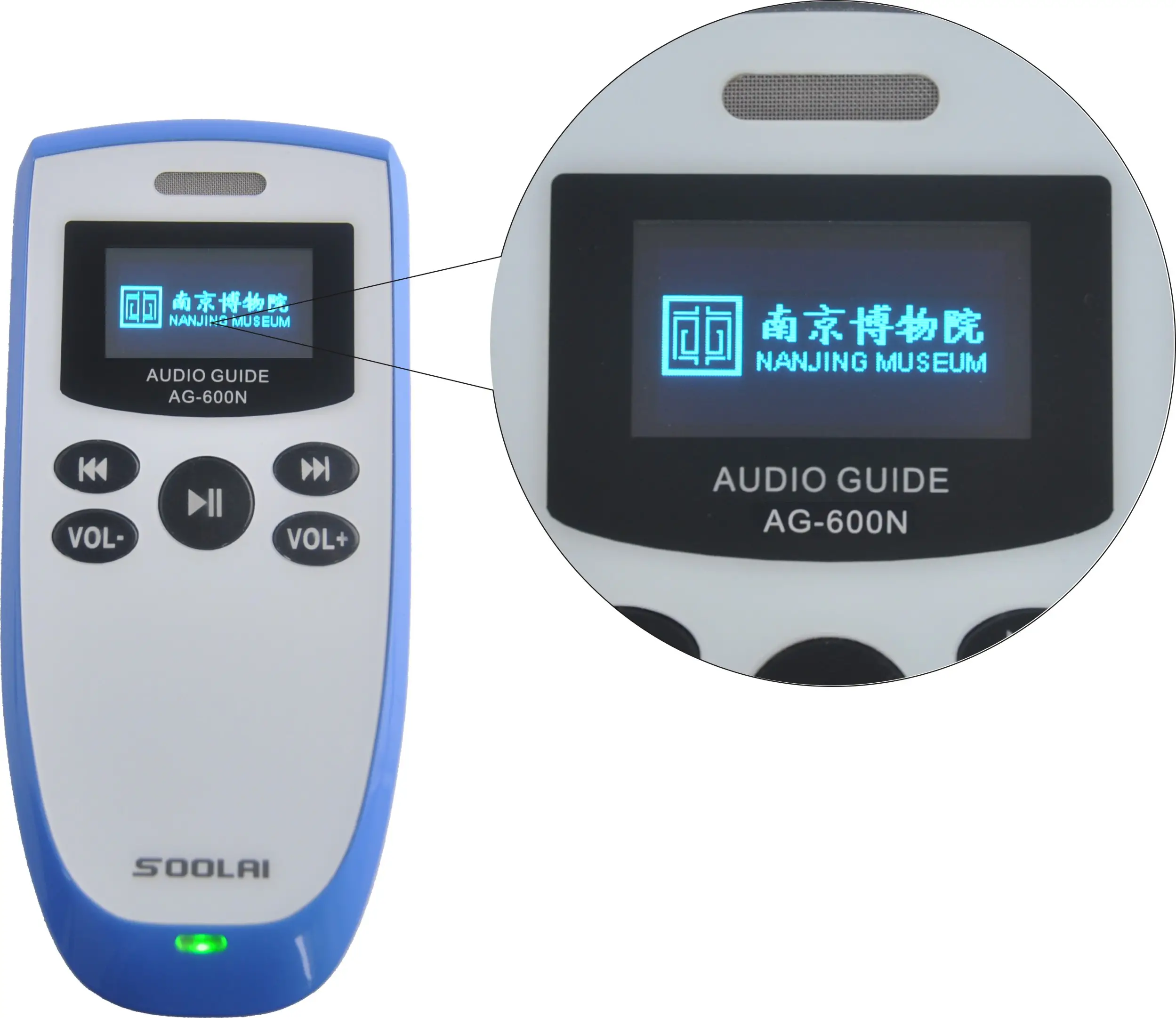

◆ Welcome screen customization |
| |
|
| |
| |
● Welcome display screen could show any character, pattern, logo, etc. |
| |
● And welcome display can be edited by user own. |
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
◆ Uploading and charging |
| |
|
| |
| |
12 slots uploader SU-12B |
|
Uploading software S-Loader |
|
| |
Charging 12 unit simultaneously |
|
Windows XP/Win7/Win10 systems |
|
| |
Uploading 12 unit simultaneously |
|
|
|
| |
|
|
|
|
| |
|
|
|
|
|
| |
| |
|
|
132-Slots Charger |
|
| |
19 inches standard cabinet 12U |
|
19 inches standard cabinet 24U |
|
| |
Dimensions: 650*500*400mm |
|
Dimensions: 1200*600*600mm |
|
| |
5pcs charger SC-12B |
|
11pcs charger SC-12B |
|
| |
Charging current: 400mA*60 |
|
Charging current: 400mA*132 |
|
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
◆ System Specification of audio guide system |
| |
Ways of play |
Automatic triggering play |
|
|

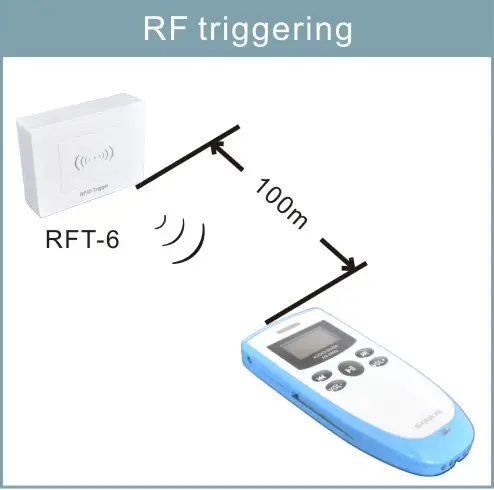

RFID Trigger |
2.4GHz / 0～100m trigger range (16 steps) |
|
|

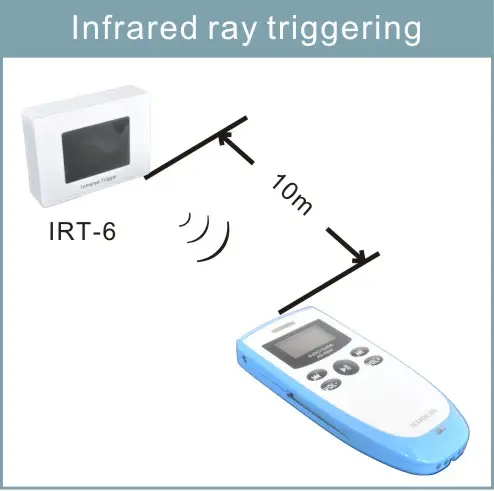

Infrared Ray Trigger |
38KHz / 0～10m trigger range (4 steps) |
|

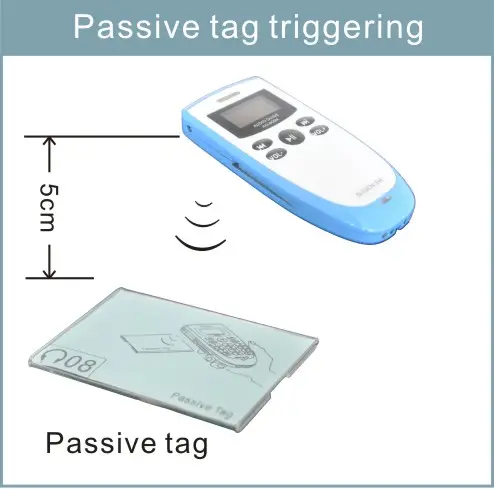

| Passive Tag Trigger |
13.56MHz / 14443A standard / 0～5cm trigger range |
|
| |
File Format |
Mp3 Format (8-48KHz sample rates,8-320kbps bit rate) |
|
| Memory Capacity |
4GB (Optional 8G/16G/32G) |
|
| |
Multi-Language |
99 (Maximum) |
|
| |
Tracks Number |
4096 (per language) |
|
| |
Display name of object |
Support multi-language text display |
|
| |
Display screen |
128*64 dot matrix, OLED Double Color |
|
| |
Built in speaker |
8Ω/0.5w |
|
| |
Play controls |
Play/Pause, Fast forward/Fast rewind, Previous/Next |
|
| |
Anti-theft alarm function |
Support |
|
| |
Audio Frequency Response |
50～18,000Hz |
|
| |
Distortion |
<0.02% |
|
| |
Audio Dynamic Range |
88dB |
|
| |
S/N Ratio |
96dB |
|
| |
Operating Temperature |
-10～60℃ |
|
| |
Power Supply |
Lithium ion battery 3.7v/1020mAh |
|
| |
Operating Time |
About 12 hours |
|
| |
Dimension |
108*49*16mm |
|
| Weight |
50g (include battery) |
|
