Q1. Working principle and trigger setting of two neighboring exhibitions |
|
| |
| |

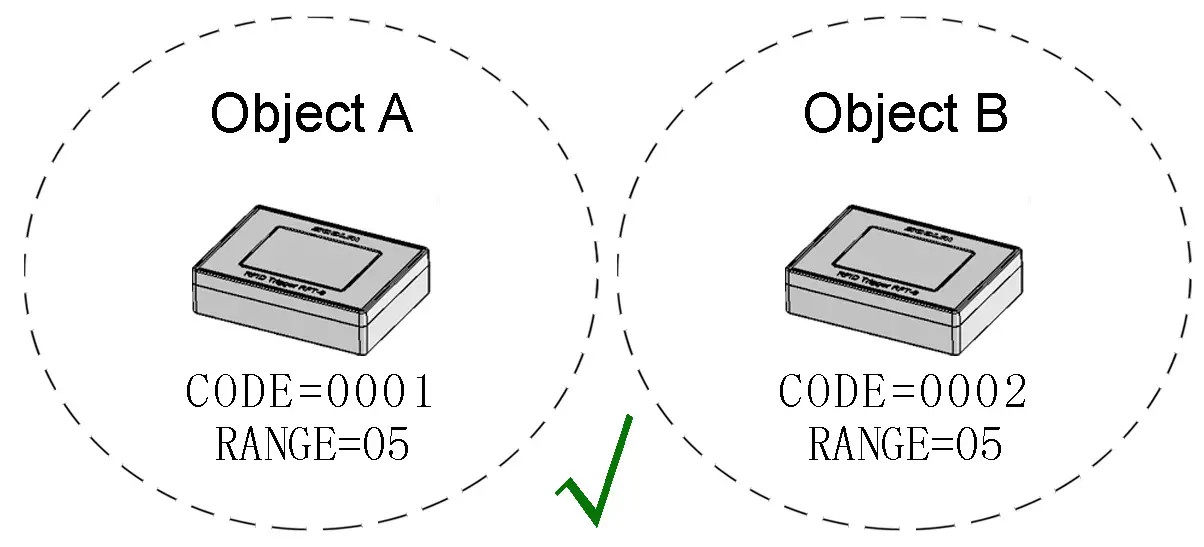

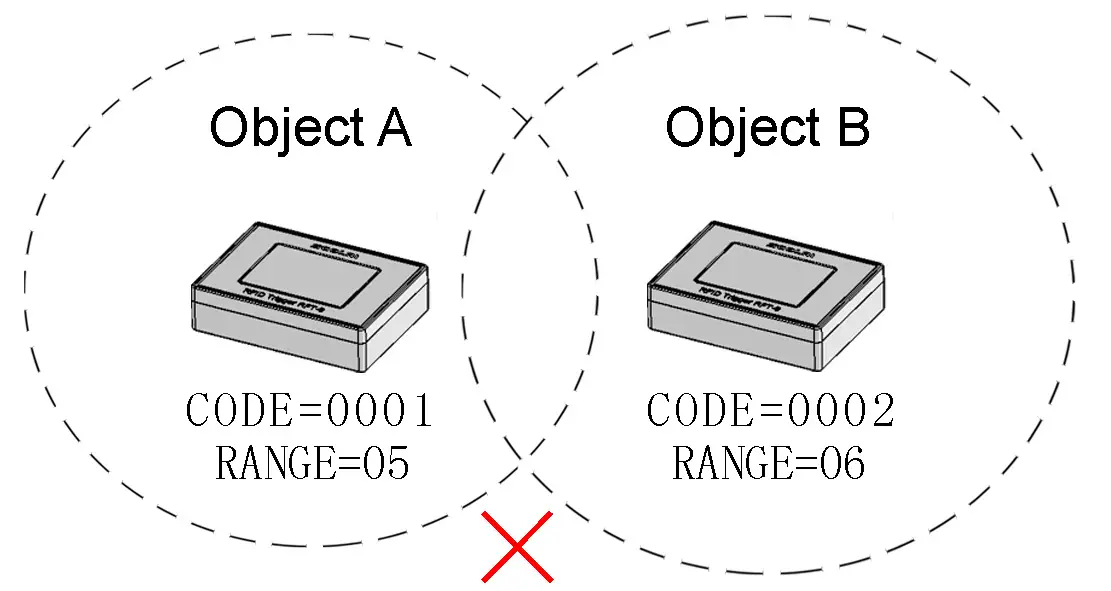

I. RFID trigger should be placed beside every object and range should be set like the right figure to avoid overlapping. |
|
| |
| |
 |
 |
|
| |
| |
One way to avoid overlapping phenomenon is to install more triggers with smaller area and same code in certain area. |
|
| |
In this way, it will not overlapping with neighboring object. |
|
| |
| |
|
|
| |
| |
II. If overlapping is inevitably, please set the “Spell trigger” menu item to “Enable” or “Intelligent” to avoid this problem. |
|
| |
| |
|
|
| |
Enable: In this state, all the codes have been triggered previously will not be triggered again. (For Rental mode) |
|
| |
Disable: In this state, it will trigger when received new signal no matter has been triggered or not. |
|
| |
Intelligent: In this state, when it received new signal, it will firstly judge if the received signal code is last play |
|
| |
record or not. If the code is last play record, it will not trigger by this code again. |
|
| |
|
|
| |
|
|
| |

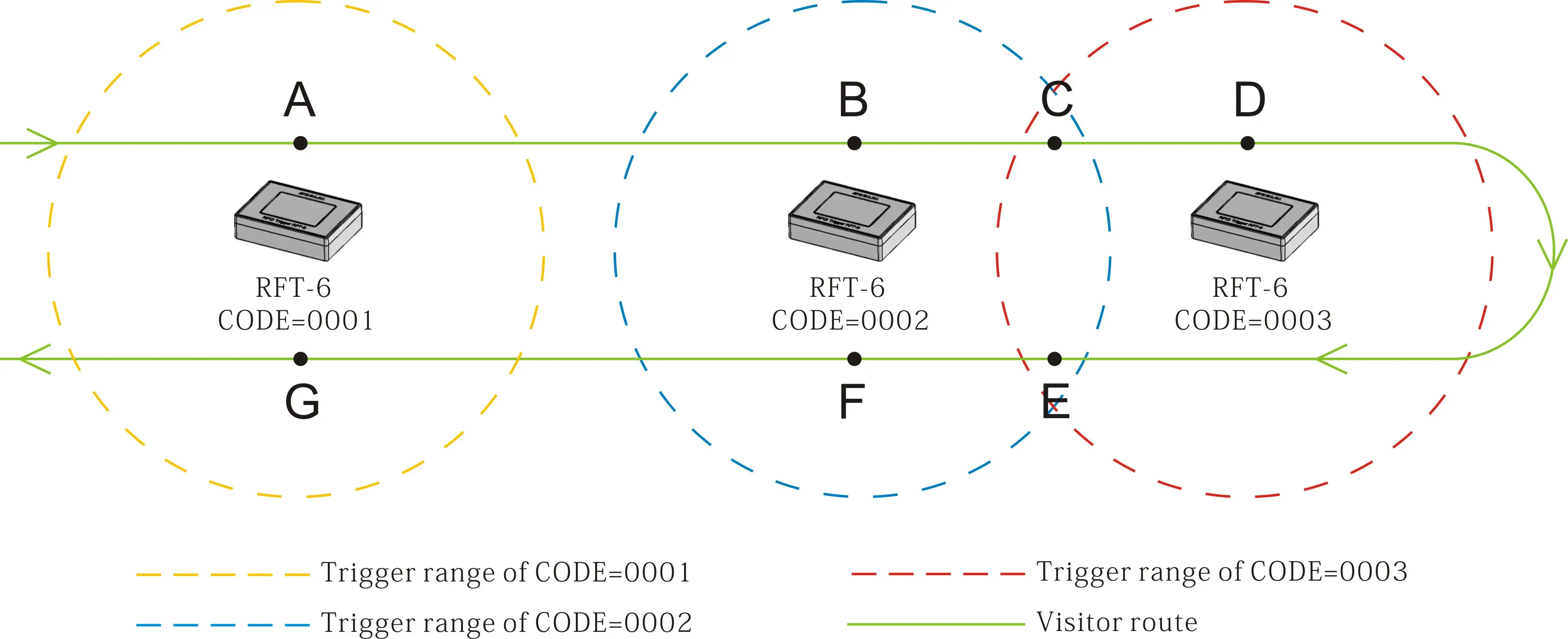

Audio guide unit will work in three different situations as below: |
|
| |
|
|
| |
|
|
| |
| |
A. If “Spell trigger” menu item is set to “enable”, audio guide unit will work like this: |
|
| |
① Visitor arrived at site A, audio guide unit is triggered by code 0001. |
|
| |
② Visitor arrived at site B, audio guide unit is triggered by code 0002. |
|
| |
③ Visitor arrived at site C, audio guide unit is triggered by code 0003. Because it has been triggered code 0002 |
|
| |
just now at site B, it will not be triggered by code 0002. |
|
| |
④ Visitor arrived at site D, it will keep playing current audio of code 0003. |
|
| |
⑤ Visitor arrived at site E, audio guide unit will not be triggered again because has been triggered by code 0002. |
|
| |
It will keep playing current audio of code 0003. |
|
| |
⑥ Visitor arrived at site F, audio guide unit will not be triggered again because has been triggered by code 0002. |
|
| |
It will keep playing current audio of code 0003. |
|
| |
⑦ Visitor arrived at site G, audio guide unit will not be triggered again because has been triggered by code 0001. |
|
| |
Remark: If you have enabled spell trigger mode, please re-decode the audio guide unit by WD-900 before use |
|
| |
it next time. |
|
| |
|
|
| |
B. If “Spell trigger” menu item is set to “disable”, audio guide unit will work like this: |
|
| |
① Visitor arrived at site A, audio guide unit is triggered by code 0001. |
|
| |
② Visitor arrived at site B, audio guide unit is triggered by code 0002. |
|
| |
③ Visitor arrived at site C, audio guide unit is triggered continuously between code 0002 and 0003. |
|
| |
④ Visitor arrived at site D, audio guide unit is triggered by code 0003. |
|
| |
⑤ Visitor arrived at site E, audio guide unit is triggered continuously between code 0002 and 0003. |
|
| |
⑥ Visitor arrived at site F, audio guide unit is triggered by code 0002. |
|
| |
⑦ Visitor arrived at site G, audio guide unit is triggered by code 0001. |
|
| |
|
|
| |
C. If “Spell trigger” menu item is set to “Intelligent”, audio guide unit will work like this: |
|
| |
① Visitor arrived at site A, audio guide unit is triggered by code 0001. |
|
| |
② Visitor arrived at site B, audio guide unit is triggered by code 0002. |
|
| |
③ Visitor arrived at site C, audio guide unit is triggered by code 0003. Because last playing record is audio |
|
| |
of code 0002, it will not be triggered by code 0002 again. |
|
| |
④ Visitor arrived at site D, it will keep playing current audio of code 0003. |
|
| |
⑤ Visitor arrived at site E, audio guide unit will not be triggered by code 0002 again because last |
|
| |
playing record is audio of code 0002. It will keep playing current audio of code 0003. |
|
| |
⑥ Visitor arrived at site F, audio guide unit will not be triggered by code 0002 because last playing record |
|
| |
is audio of code 0002. |
|
| |
⑦ Visitor arrived at site G, audio guide unit will be triggered by code 0001, because last play record is |
|
| |
audio of code 0002, not code 0001 itself. |
|
